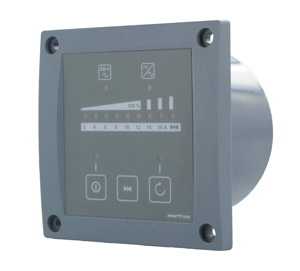

SmartfuseSmartfuse pic
Shore power supply is usually limited by a 4 to 10A circuit breaker. After a day of sailing the ships batteries may be heavily discharged. If the battery charger is switched on while a heavy on-board appliance is being used the circuit breaker may be activated. The Smart fuse avoids this by disconnecting the power supply when a preset threshold is reached.

Features:

-Disconnects power supply when current reaches or exceeds a given set
point.
-Current limit can be set through a simple button interface in steps of 2 ampere up to a maximum of 16 amperes.
-The current is displayed by a LED array in percentage of the set point.
-When the set point is exceeded, the Smart Fuse can switch to an alternative power supply if available.
-Buzzer alarm.
-External output to power up generator.

The Smart fuse is operated using three buttons. The power source can be selected by pressing the left button (i.e. inverter or shore power).

The button in the middle sets the current limit. Each time the button is pushed the set point increases by two amperes with a maximum value of 16 amperes. The button on the right resets the Smart fuse when an overload condition has occurred.

An acoustic signal will be generated when an overload occurs. The switch off delay is determined by the height of the overload current.

Installation is simple and can be done in a short time. Connections are made by universal ‘fast-on’ connectors.

Technical specifications:

  • -Max. current: 16 A
  • -Max. voltage (shore input): 255 V
  • -Load on inverter: present
  • -Housing: water-resistant, dashboard
  • -Drill hole: 75 mm
  • -Panel measurements: 90mm x 90mm x 47mm (h x w x d)
